Weld Fixtures

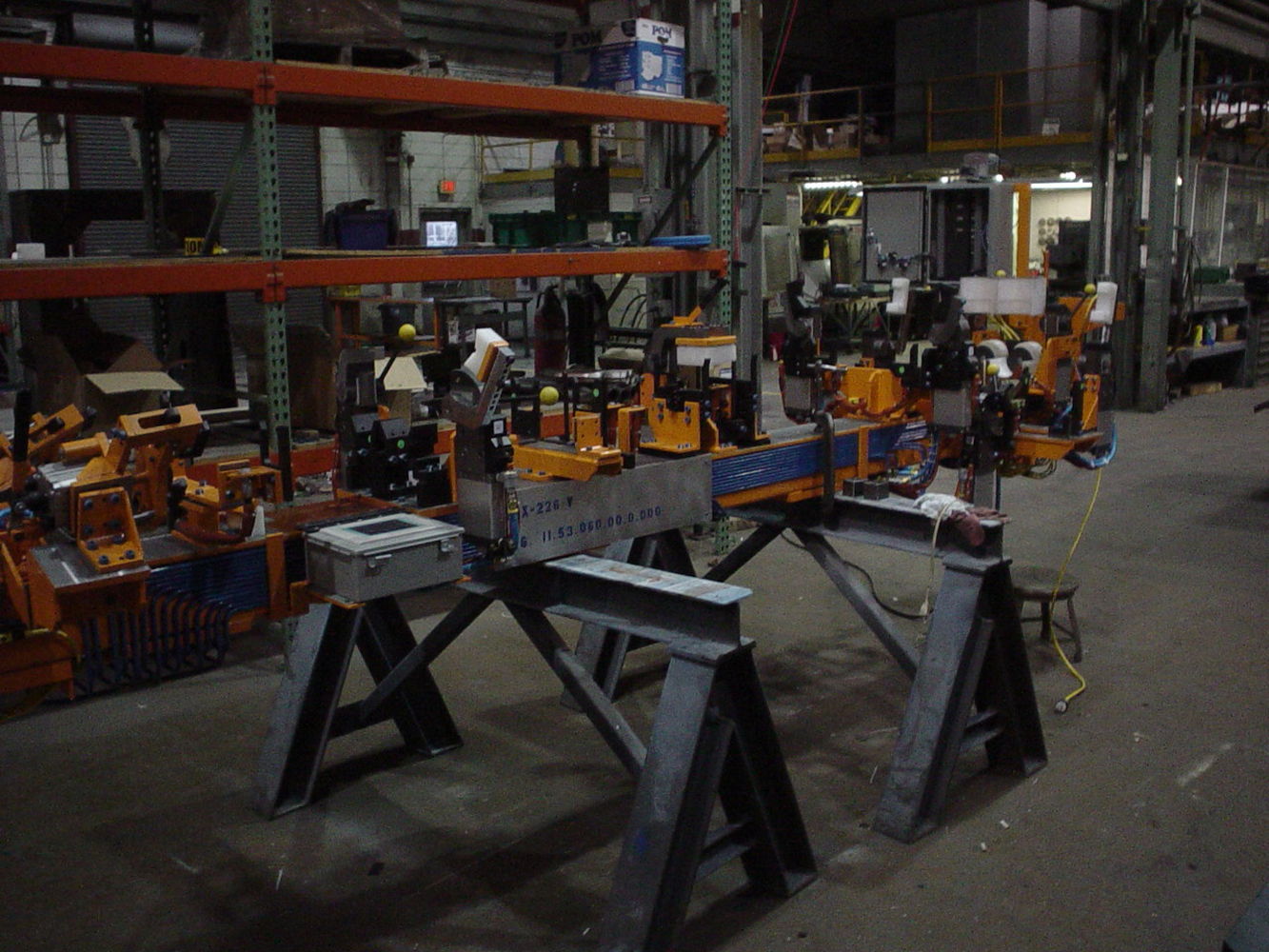

Muffler Welding Fixture
This weld fixture is used to locate a series of components for a complete (cold end) muffler
assembly. It sets the parts to the GDT of the assembly. The parts are manually loaded
for the robot to weld.

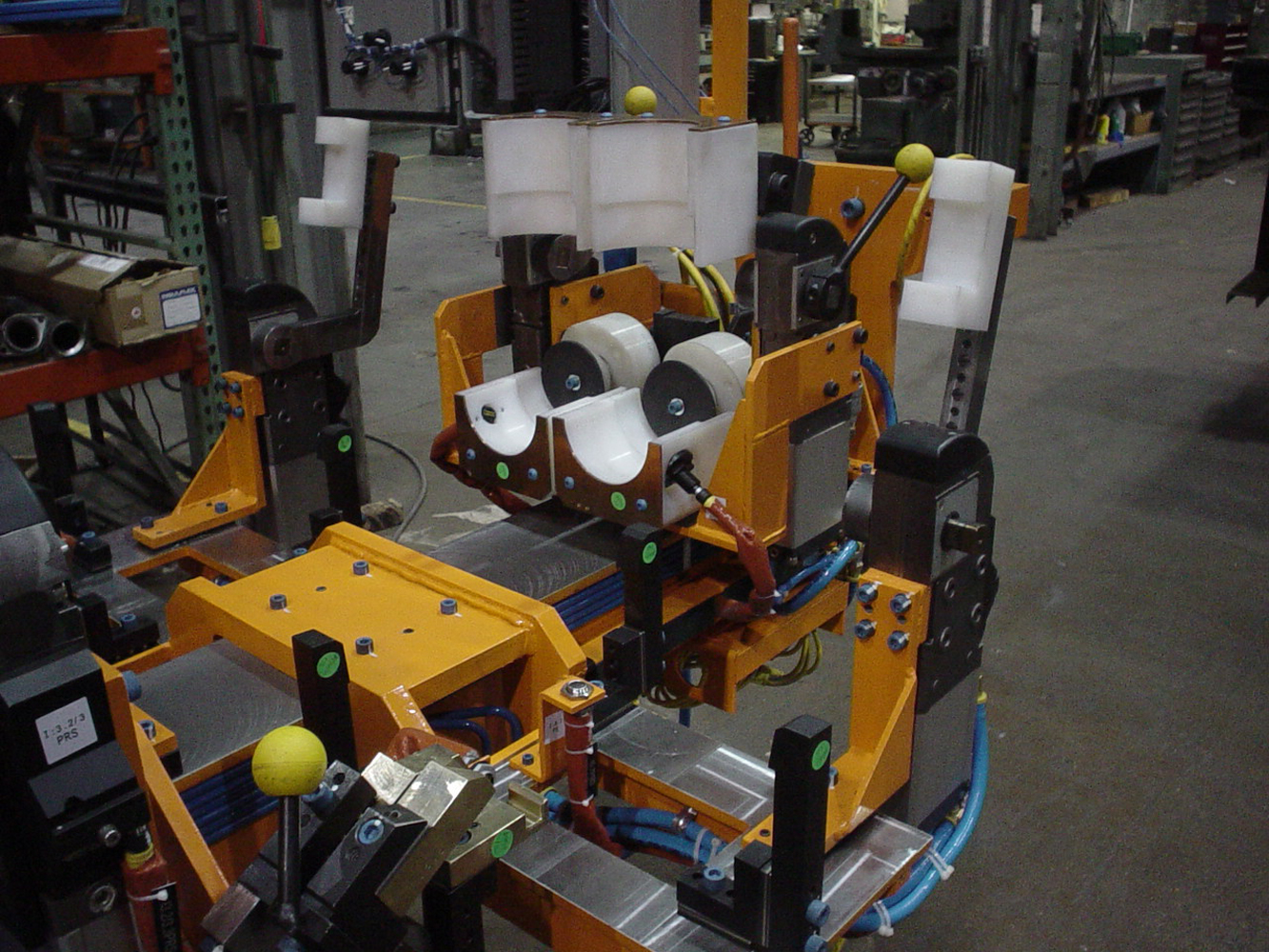

Muffler Shell
View of muffler shell and tip tooling.

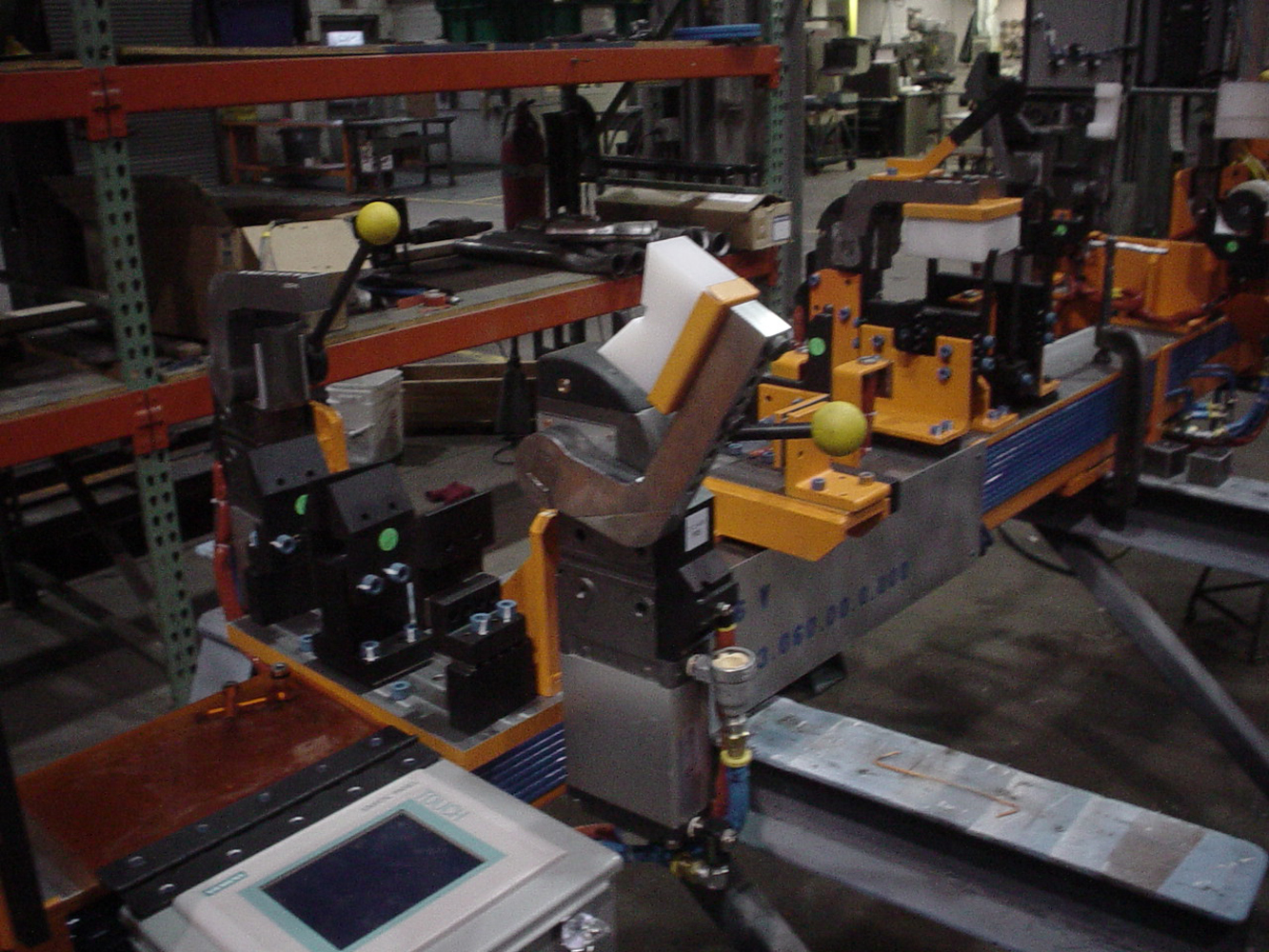

Converter Tooling
View of converter tooling.
